Runthrough

Design, walked through with the client

The finished addition on a steeply falling site, cut in at the high end and on poles at the low end. — Courtyard House, from site preparation to handover.

Runthrough connects the construction sequence, the cost and time of alterations, and a walk through the furnished rooms. Courtyard House carries the original design and its architectural alternatives through the same model.

Open Runthrough Import a design

Courtyard House: the original design and its architectural alternatives.

The build-up

Site preparation, footings, structure, openings and fit-out follow the construction sequence, with each stage tied to the work it depends on.

This house wraps a 15.84 m² courtyard. Its site falls 2.84 m along the 9.6 m building length, so a level floor meets the cut at one end and stands on 17 poles at the other.

01Site & set-up 02Footings & poles 03Structure 04External walls 05Openings 06Roof 07Services 08Internal linings 09Joinery & fixtures 10Furniture & fit-off 11Courtyard & handover

Construction stages carry labour, crew allowances and delivery windows through the sequence.

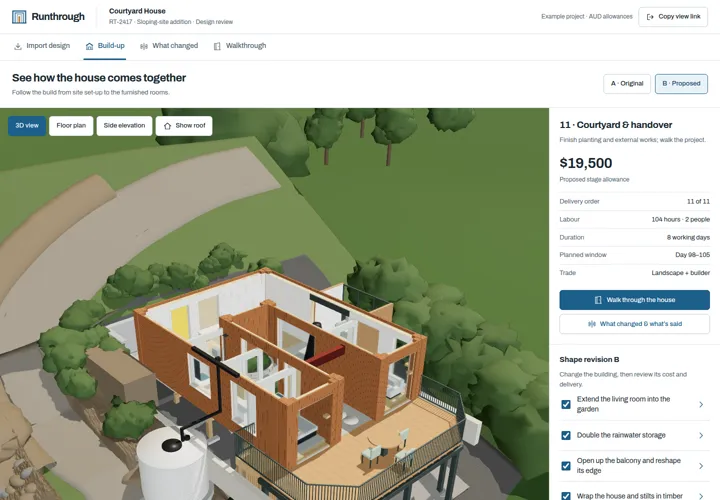

Runthrough build-up — Eleven construction stages, with labour and delivery windows.

Design changes

The original design and the proposed garden extension or two-storey studio share the same view. Tank size, balcony depth and facade materials remain visible in the comparison.

Each alteration carries its price, labour hours and delivery allowance. Selected changes update the total and downstream finish, with notes retained alongside the scope.

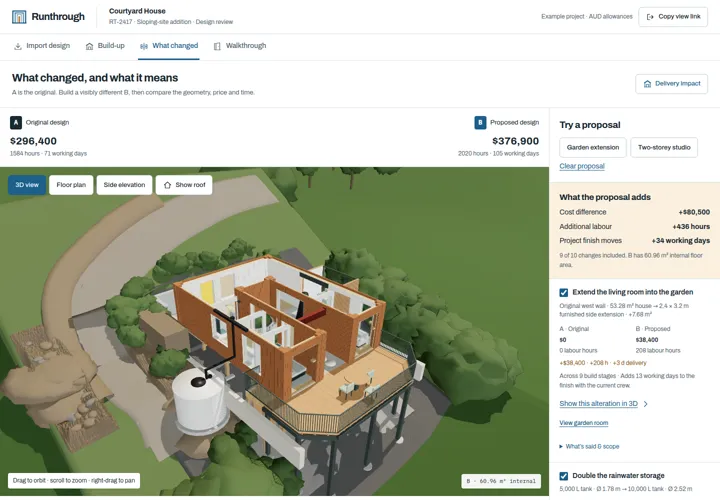

Runthrough existing and proposed building comparison — Original and proposed designs, scope changes and cost impacts.

Design A · Original Reviewing B · Proposed Scroll to wipe

Review changes & costs →See the delivery impact

Design imports

Start with a model from Autodesk Revit or SOLIDWORKS. Bring in a self-contained GLB export or a STEP assembly, inspect the actual geometry, then assign its components to the construction sequence.

Autodesk Revit / SOLIDWORKS→ Exported model→ Runthrough

GLB and STEP exports retain the model geometry for component inspection and construction-stage assignments.

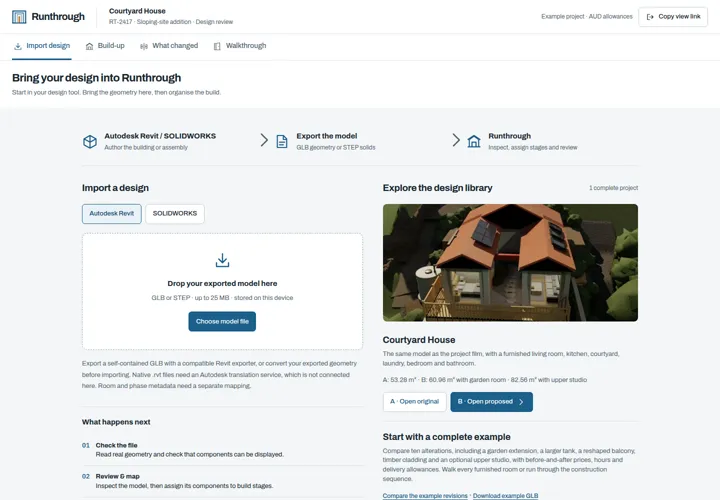

Runthrough design import — GLB and STEP imports, component records and construction stages.

Rooms and viewpoints

Living room, courtyard, kitchen, laundry, bedroom and bathroom connect through the furnished house. The garden room and upper studio extend the room list and level plan with the proposed design.

Living Courtyard Kitchen & dining Laundry Bedroom Bathroom Garden extension Upper studio

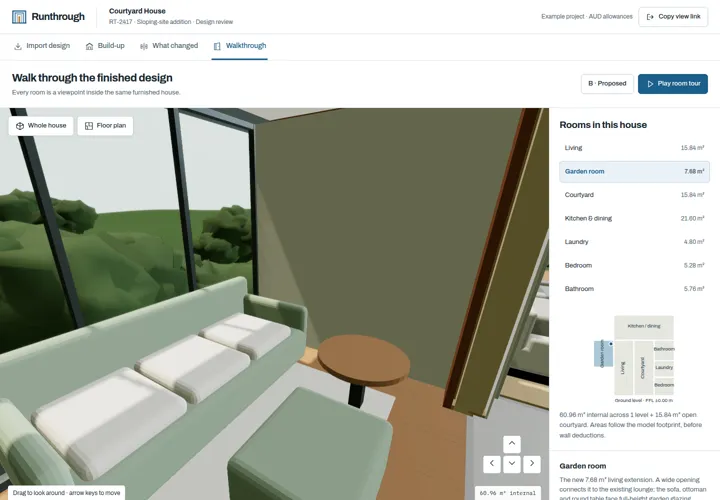

Runthrough walkthrough — Furnished rooms and their locations on the floor plan.

Project review

Construction sequence

Eleven stages, plan and 3D views, component assignments, labour and crew allowances.

Design changes

Ten alterations with cost and time impacts, revision comparison, scope notes and a downloadable review.

Room walkthrough

Furnished viewpoints, linked floor plans and saved camera positions across the original and proposed designs.

Courtyard House includes furnished rooms, wet-room fittings and partition doorways. Costs and labour allowances are in Australian dollars. Autodesk Revit and SOLIDWORKS are trademarks of their respective owners.
